Pairing flow

The merchant initiates pairing on the EFTPOS terminal. A pairing code is displayed on the terminal screen.
The merchant will enter the pairing code onto your POS.
Your POS calls POST /v1/progress-pairing with the pairing code entered by the merchant.
On success, the API returns a pairing response (see fields below). Your POS must store these values.

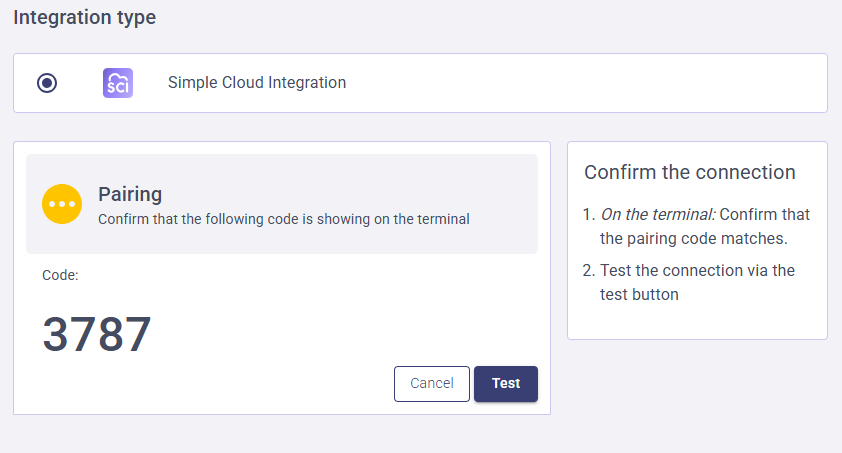

A confirmation code is displayed in the API response and simultaneously on the terminal. The merchant verifies they match, then confirms on the terminal to complete the pairing. The pairing becomes active only once the confirmation is completed on the terminal.
Your POS will display a test button which calls GET /v1/pairing-info.
The merchant will test that the pairing is active to finalise the pairing as successful.

Request

POST https://sci-pairing-api.integrations.mx51.io/v1/progress-pairing

{
  "pairing_code": "123456",
  "pairing_nickname": "Front Bar" //Optional
}

Field	Required	Description
`pairing_code`	Yes	The code displayed on the terminal
`pairing_nickname`	No	A label to help identify this pairing in your POS which is especially useful in multi-POS setups (e.g. "Front Bar")

Response

{
  "data": {
    "pairing_id": "pid_b6f1242d-9a69-4991-aa67-79d5bd49235a",
    "key_id": "kid_1a049709-65d4-480d-bdf0-f3e49699c67b",
    "confirmation_code": "1234",
    "signing_secret_part_b": "5b1e070927ddb9fe5931e7e2aaaad5c1",
    "spi_cloud_api_base_url": "https://sci-api.<tenant-specific-domain>",
    "tid": "tid123",
    "pairing_nickname": "Front Bar",
    "terminal_nickname": "Terminal 123"
  }
}

Field	Description
`pairing_id`	Unique identifier for this pairing
`key_id`	Used as `keyid` in all SCI API request signatures
`confirmation_code`	Displayed on the terminal simultaneously - merchant verifies they match before confirming
`signing_secret_part_b`	Combine with your Signing Secret Part A to form the full Signing Secret for this pairing
`spi_cloud_api_base_url`	Must be stored per pairing. The base URL for all SCI API requests for this terminal. Different terminals may return different URLs.
`tid`	The TID assigned to the terminal
`pairing_nickname`	The pairing nickname provided in the request
`terminal_nickname`	The terminal nickname configured on the terminal

Checking pairing status

Before navigating to the pairing section of your POS and before initiating a transaction, call GET /pairing-info to verify the pairing is still active:

200 OK - pairing is active
401 with no_active_pairings_found - pairing is not longer active; display an unpaired state and prompt the merchant to re-pair from the terminal

Unpairing

To remove a pairing, call POST /v1/unpair. A successful response returns 204 No Content.

Pairing error reference

HTTP	Error code	Description	Resolution
400	`invalid_request`	Missing `pairing_code` or invalid value	Check request fields
401	`api_key_invalid`	Invalid Pairing API Secret Key	Verify your API key
401	`api_key_missing`	`Authorization` header missing	Add the `Authorization: ApiKey [key]` header
403	`pairing_route_forbidden`	Terminal not connected to an authorised tenant	Ensure you are using a terminal in an authorised environment
403	`test_api_key_forbidden_for_live_pairing`	Test key used against a live environment	Use your live Pairing API Secret Key
404	`pairing_not_found`	Pairing code not found	Check the code entered by the merchant
422	`pairing_not_initial`	Pairing already progressed, expired, or revoked	Restart the pairing process from the terminal

Pairing UI requirements

Your POS pairing screen must meet the following requirements for certification.

Unpaired state

The pairing screen must display:

A Pairing Code input field - mandatory
A Pairing Nickname input field - optional
SCI branding - the name "Simple Cloud Integration" must be displayed, along with the SCI logo below.
- Contact [email protected] to request other brand assets.

Pairing instructions - recommended; show the merchant how to initiate pairing from the terminal (optional for certification — SCIPAIRING09)

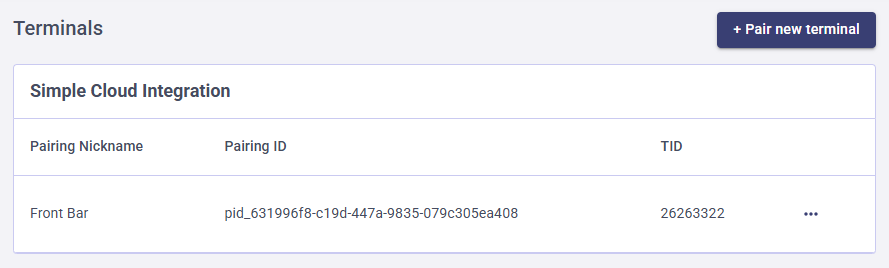

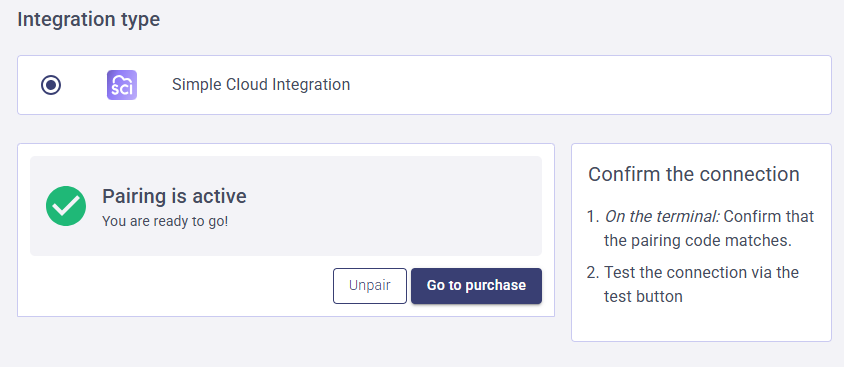

Paired state

Once pairing is complete, the screen must display:

A success message - mandatory
Pairing Nickname and Pairing ID - mandatory
TID and Terminal Nickname - optional

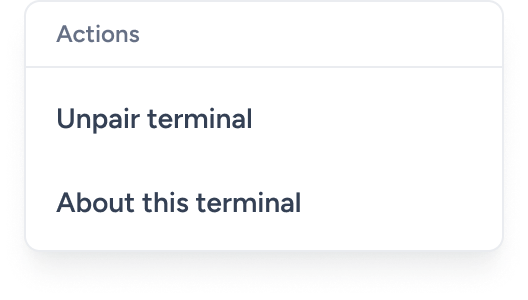

An Unpair button - mandatory

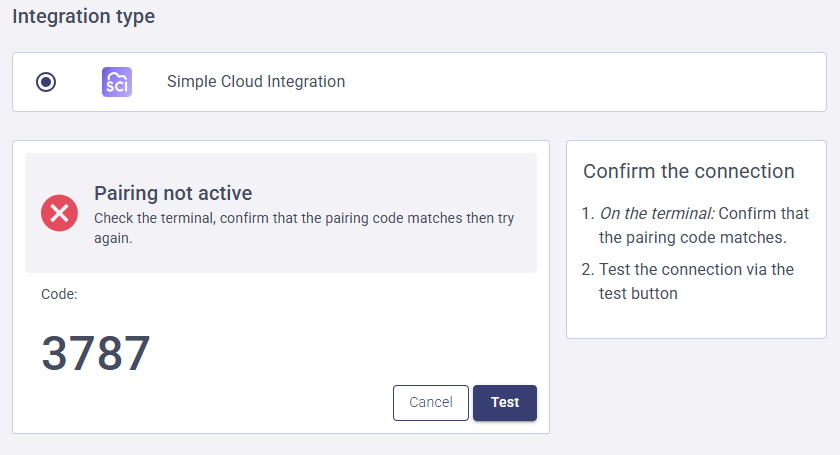

Error states

Your POS must handle and display the following error states:

Scenario	Required display
Invalid pairing code entered	Error from API: `"Pairing not found: Pairing not found"`
Network/connectivity failure	Suggested: `"Please check network and terminal connections and try again"`
Pairing has been unpaired externally	Clear error shown when navigating to the pairing section or before initiating a transaction (detected via `GET /pairing-info`)
